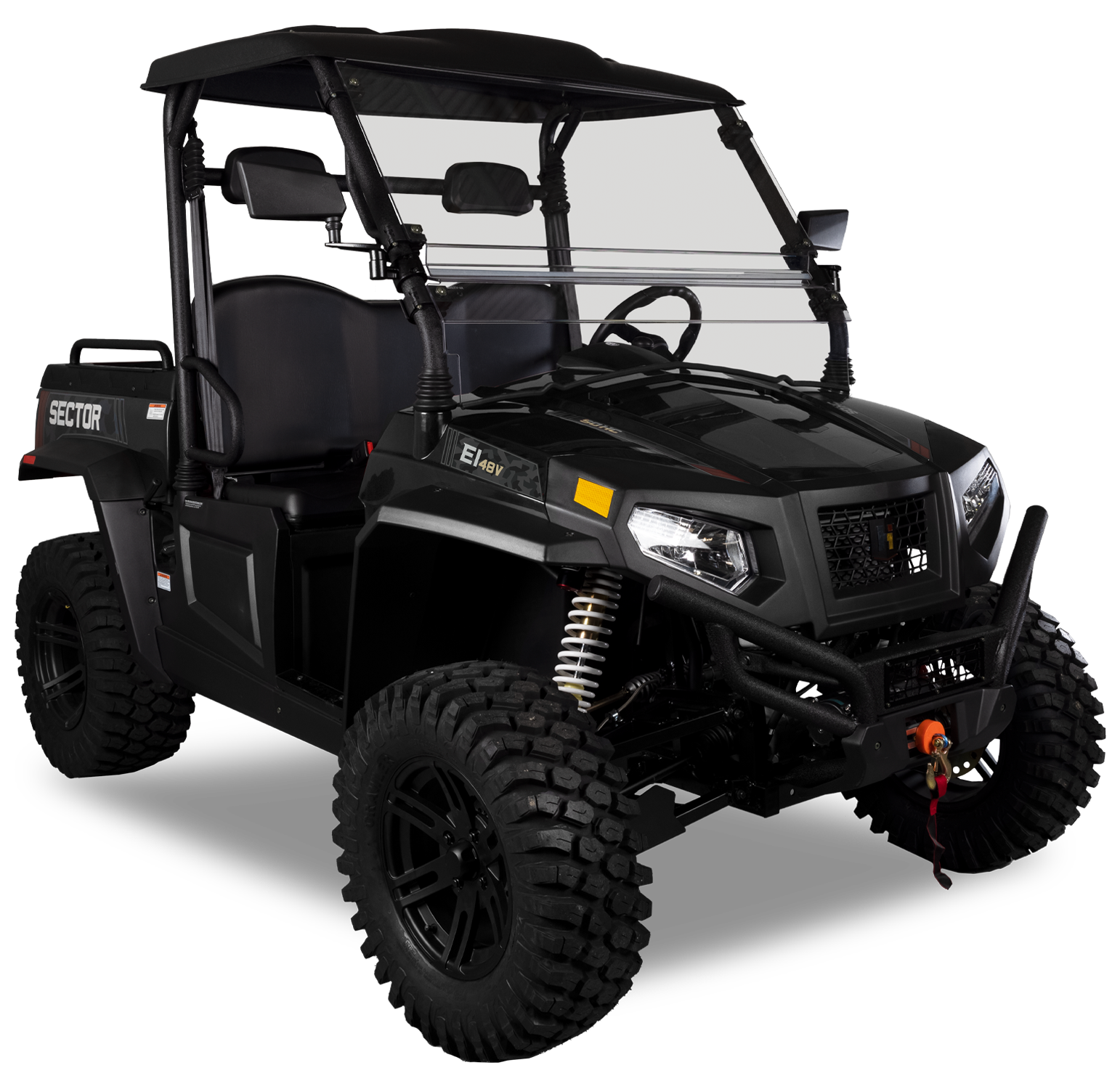

Sector E1

Sector E1

$13,199

The 48 Volt 30 HP AC drive train is powerful enough to go over the toughest terrain without all the noise of a gas-powered engine. Nitrogen-Assisted Independent Suspension and Four-Wheel Hydraulic Brakes will keep you in full control. Built for stability and performance.

HIGHLIGHTS

  • 42 Mile Run Time on a Single Charge
  • Maintenance Free Discover™ Dry Cell Battery
  • 48 Volt, 30 HP with over 220 ft. lbs. of Torque


Color:

*additional $500 for Camo

2-YEAR WARRANTY

DOWNLOAD BROCHURE

SPECIFICATIONS

  • Motor

    Engine Type

    AC Induction


    Battery Voltage

    48


    Battery Type

    Discover™ Dry Cell


    Battery Capacity

    2080 Amp/Hours


    Charge Time

    6 - 10 hours


    Charging System

    1.2 kW


    Horsepower

    30


    Torque (ft. lbs.)

    220

  • Drive Train

    Transmission

    L/M/H/N/R


    Drive System

    2WD / 4WD


    Locking Differential

    Front


    Final Drive

    Direct


    Range

    > 42 Miles*

  • Chassis / Suspension / Brakes

    Front Suspension

    Dual A-Arm


    Rear Suspension

    Dual A-Arm


    Shocks

    Hydraulic W/ Nitrogen Assist


    Front / Rear Brakes

    Hydraulic Disc


    Parking Brake

    Mechanical


    Front Tires

    27 x 9-14


    Rear Tires

    27 x 11-14


    Wheels

    Aluminum

  • Dimensions

    Overall Vehicle (L x W x H)

    110" x 62" x 73"


    Wheel Base

    72.5"


    Cargo Bed Dimensions (L x W x H)

    30" x 41" x 11"


    Cargo Bed Dump Type

    Gas Assist


    Cargo Bed Capacity

    500 LBS


    Person Capacity

    2


    Empty Vehicle Weight Rating

    2,061 LBS


    Gross Vehicle Weight Rating

    2,764 LBS


    Tow Rating

    1,500 LBS


    Ground Clearance

    11"

  • Other

    Instrumentation

    Analog Speedometer & Tachometer With LCD

    Rider Information


    Winch

    3,500 LBS


    Roof

    Yes


    Windshield

    2-Piece


    Brake Lights

    Yes


    Headlights

    High / Low Beam


    Turn Signals & Horn

    Yes


    Doors

    Not Available


    Electronic Power Steering

    Not Available


    Warranty

    2-Year Limited


    Colors

    Camo, Cavalry Blue, HISUN Red, Black Ops, Destroyer Grey
