DR-Z125L

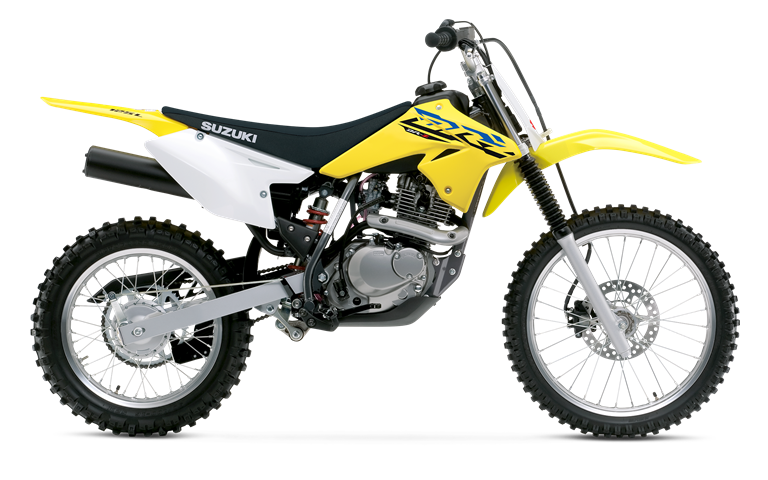

2024 DR-Z125L

$3,599

  • Description

    Here comes the DR-Z125L to make sure young and smaller stature riders can tackle the dirt. Larger 19-inch front and 16-inch rear tires, as well as a front disc brake, deliver big bike performance to a size-appropriate motorcycle. Here’s the perfect platform to build essential riding skills upon, as the DR-Z125L has a true manual clutch and a five-speed transmission so riders can develop these skills as they advance within the sport of motorcycling. Styled to mirror Suzuki’s Championship-winning RM-Z and RMX models, this DR-Z arrives with a race-oriented look, while the sharp handling and strong low-end and mid-range power provide the get-up-and-go that defines off-road bikes. The bike’s race ready looks prove you can’t judge a book by its cover, because the DR-Z125L is an unassuming, easy to ride package packed with loads of fun.

Quote

FEATURES

  • Key Features

    Compact and reliable, 124cc, 4-stroke, single cylinder engine


    Smooth-shifting transmission with easy-pull clutch


    Strong steel frame and beam-style swingarm


    Telescopic forks and link-type rear suspension


    Champion-approved RM-Z styling with race-inspired graphics

  • Engine Features

    Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.


    Precise digital CDI ignition system has an ignition-timing map that’s tuned to optimize the engine’s power characteristics.


    Mikuni VM20SS carburetor contributes to excellent throttle response.


    Suzuki Composite Electrochemical Material (SCEM)-plated cylinder is used for durability, weight reduction, and superior heat transfer.


    Spark-arrestor equipped muffler is environmentally friendly yet has a pleasant exhaust note.


    Clean-burning four-stroke engine is Environmental Protection Agency (EPA) Emissions compliant.


    The 2024 DR-Z125L is eligible for California Green Sticker Off-Road registration.

  • Transmission Features

    Five-speed transmission with link-type, foot-operated gearshift system for precise operation and good feedback to the rider.


    Easy-pull, rack-and-pinion manual clutch lets the rider control takeoffs and power delivery.

  • Chassis Features

    Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.


    Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contribute to agile handling and smooth suspension performance.


    The seat and bodywork design provides a seamless surface for easy maneuverability.


    Appropriate 32-inch seat height lets the bike fit a variety of riders.


    Strong braking performance is provided by a lightweight front disc brake and rear drum brake.


    Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.


    The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions and rider weight.


    Bright Suzuki Factory Yellow bodywork includes blue, black, and red race-inspired graphics.


    A lightweight plastic skid plate helps protect the bottom of the engine.

  • Additional Features

    6-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*


    *Subject to separate coverage for certain parts and the exclusions and limitations described in the New Off-Road Motorcycle Limited Warranty.


    A variety of Genuine Suzuki Accessories for DR-Z125L owners are available, including a large selection of Suzuki logo apparel.

SPECIFICATIONS

  • Engine

    Engine

    124cc, 4-stroke, air-cooled, single cylinder, SOHC


    Bore x Stroke

    57.0 mm x 48.8 mm (2.244 in. x 1.921 in.)


    Compression Ratio

    9.5:1


    Fuel System

    Mikuni VM20SS, single carburetor


    Starter

    Primary kickstarter


    Lubrication

    Wet sump

  • Drivetrain

    Clutch

    Wet multi-plate


    Transmission

    5-speed constant mesh


    Final Drive

    Chain, DID 428HG, 130 links

  • Chassis

    Suspension Front

    Telescopic, coil spring, oil damped


    Suspension Rear

    Link type, coil spring, oil damped


    Brakes Front

    Disc brake, single rotor


    Brakes Rear

    Drum brake


    Tires Front

    70/100-19 M/C 42M, tube type


    Tires Rear

    90/100-16 M/C 52M, tube type


    Fuel Tank Capacity

    4.8 L (1.3 US gal.)


    Color

    Champion Yellow No. 2

  • Electrical

    Ignition

    Electronic ignition (CDI)


    Spark Plug

    NGK DR8EA or DENSO X24ESU

  • Dimensions

    Overall Length

    1885 mm (74.2 in.)


    Overall Width

    770 mm (30.3 in.)


    Overall Height

    1110 mm (43.7 in.)


    Wheelbase

    1270 mm (50.0 in.)


    Ground Clearance

    290 mm (11.4 in.)


    Seat Height

    805 mm (32.0 in.)


    Curb Weight

    89.0 kg (196 lb.)

  • Warranty

    Warranty

    6-month limited warranty


    Extension

    Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP)
